Ebike
Dual-Battery Upgrade: Save $500, Boost Range up to 120km!
-
750W 80Nm Motor
-
48V 14Ah (up to 60km range)
-
Up to 32km
-
Foldable

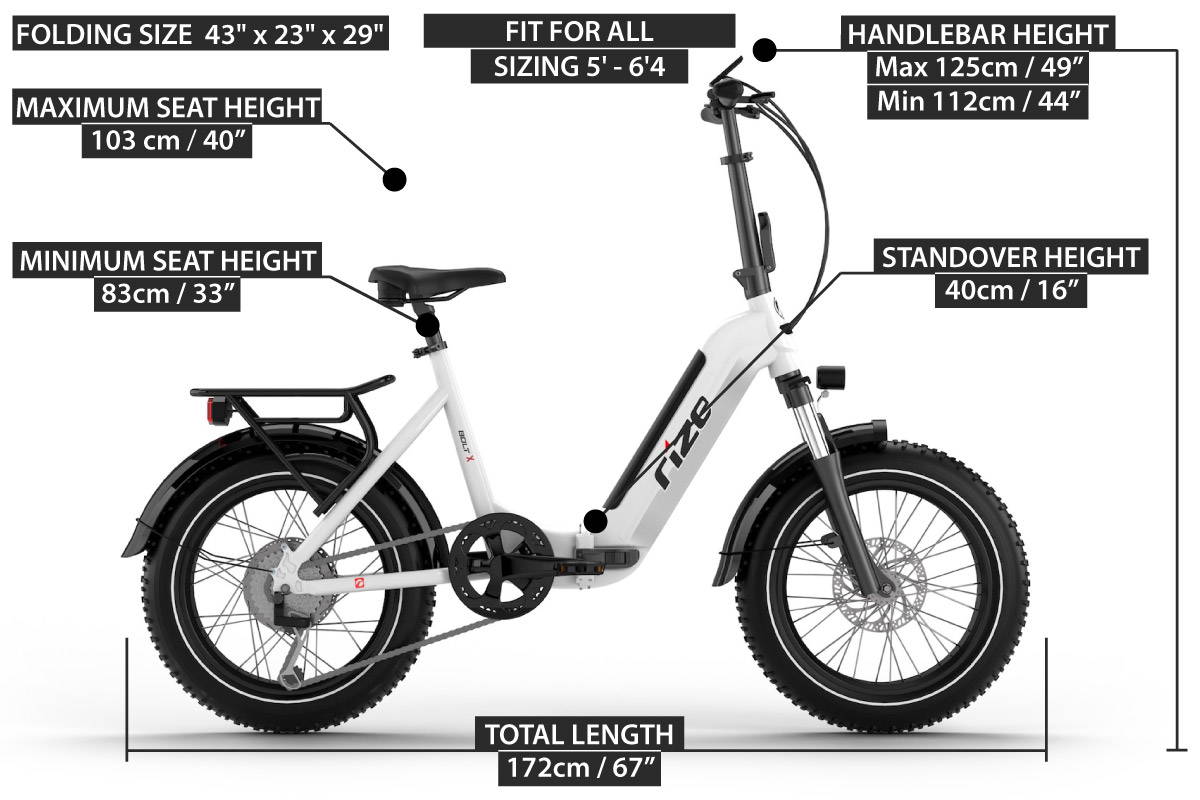

Sizing - Bolt X
| Sizing Guide | |
| Size Fit | 5'0" - 6'4" |
| Min Handlebar Height | 112cm / 44" |
| Max Handlebar Height | 125cm / 49" |
| Standover Height | 40cm / 16" |
| Min Seat Height | 83cm / 33" |
| Max Seat Height | 103cm / 40" |
| Total Length | 172cm / 67" |
| Folding Size | 43" x 23" x 29" |
| Electrical | |
| Motor | Bafang 750w 80Nm |
| Top Speed | 32km/h (default) |
| Configuration Class | 1, 2, 3 (configurable) |
| Throttle | 100% Power on Demand |
| Pedal Assist Level | 3, 5, 7, or 9 levels (default 7) |
| Pedal Assist Sensor | Cadence Sensor |
| Primary Battery | 48v 14Ah Samsung 21700 50E Cell (672Wh) |
| Dual Battery* | 48v 24Ah Samsung 21700 50E Cell (1152Wh) |
| Range* | Up to 70km / Up to 120km with Dual Battery |
| Charge Cycle | 800 |
| Charge Time | 5 Hours |
| Mechanical | |
| Frame | 6061 Aluminum Alloy |
| Fork | Suspension with Adjustable Lockout |
| Tire | Kenda with K-Shield Puncture Resistance |
| Tire Size | 20" x 3.3" |
| Rim | Double Wall |
| Brake | Dual Piston Hydraulic Brakes 160mm |
| Brake Lever | Safety Motor Inhibitors |
| Shifter | Shimano Rapid Fire 7-Speed |
| Rear Derailleur | Shimano Acera |
| Crank | 52T Single Guard |
| Freewheel | Nickel Plated 11-32T 7-Speed |
| Pedal | Wellgo Aluminum Platform |
| Handlebar Stem | Adjustable Stem High Rise |
| Seat Post | 350mm x 30.6mm |
| Saddle | Selle Royal Spring Cushion Seat with Gel Padding |
| Weight | |
| Weight | 70lbs (Including battery) |
| Load Capacity | 275lbs |
* Dual Battery: Optional and does not come standard with the bike. It must be purchased separately.
* Range: May vary and fluctuate depending on several factors, most notably the weight of the user, steepness of terrain, extent of power assist, and throttle use.
eBike Spotlight
- Dual Battery System: Enhance your range with an optional secondary battery, easily mountable on the frame for extended rides.
- Foldable Design for Ultimate Convenience: This feature is a game-changer for urban commuters and those with limited storage space, offering an easy folding mechanism for effortless transport and compact storage. Ideal for integrating into any lifestyle, it simplifies the transition between cycling and public transportation, ensuring a seamless fit into your daily routine.
- Up-Right Geometry: Enjoy a comfortable ride with our relaxed frame, perfect for city commuting without requiring high leg lifts.
Foldable Design
Maximizes convenience by folding the frame, handlebar, and pedals into the smallest possible size, ideal for urban commuting and easy storage.
Adjustable Handlebars
Offers a comfortable, upright posture ideal for urban rides.
Dual-Battery System
Optional secondary battery mounted on the seat tube for extended power and performance.
Step-Through Folding eBike
Elevate your journey with the Bolt X, where power meets portability. Featuring puncture-resistant 3.3" tires and a robust 750w Bafang motor, this eBike is your ticket to conquering diverse terrains, from bustling city streets to off-road trails. Its unique folding design ensures easy storage and transport, making it the perfect companion for adventurers on the move. Stand out with the only folding bike on the market that boasts a dual battery system, offering an unmatched range of up to 120 km. The Bolt X is designed for those who dare to explore further.
Features
Compact Folding
Effortless folding enables easy transport, compact storage, and seamless integration into daily routines for urban commuting.
Super Bright Headlight
Light your way far and wide with our powerful 120 lux headlight, casting visibility up to 5 km for ultimate safety.
Taillight
Two LED lights powered by the main battery serve as both brake light and taillight, with flashing and normal modes.
Software
Customize your e-bike's settings: secure lock, set speed limit, adjust motor response, and choose pedal assist range.
Puncture Resistant Tires
Equipped with K-Shield technology for optimal puncture resistance.
Nickel Plated Gears 11-32 Tooth
Easily tackle hills with our wide-range, rust-resistant, nickel-plated gears.
Rapid Shifter
The new ergonomic Shimano shifter offers smooth and easy shifting. Downshift multiple gears with one single push.
Front Suspension
Smooth out the bumps with our front suspension, crafted for comfort on any terrain.
Adjustable Handlebars
Enjoy a comfortable ride with the customizable handlebar. Adjust the height of the handlebar to suit your preference!
Thumb Throttle
Instant power boost at your fingertips—the harder you press, the more assistance you get.
Selle Royal Spring Cushion Seat
Enjoy a smooth and comfortable ride on various terrain while the springs absorb all shocks.
Rear Rack and Mudguards
Carry more and stay clean with our practical rack and sleek mudguards. Stay free of mud, dirt, and water.
Explore Your eBike Inside Out
Dive into the details that make your eBike exceptional. From technical specifications and sizing information to understanding the LCD display and assembly process, discover what's included and find answers to frequently asked questions (FAQ). Let's make your eBike experience seamless and enjoyable!
Technical Data
| Electrical | |
| Motor | Bafang 750w 80Nm |
| Top Speed | 32km/h (default) |
| Configuration Class | 1, 2, 3 (configurable) |
| Throttle | 100% Power on Demand |
| Pedal Assist Level | 3, 5, 7, or 9 levels (default 7) |
| Pedal Assist Sensor | Cadence Sensor |
| Primary Battery | 48v 14Ah Samsung 21700 50E Cell (672Wh) |
| Dual Battery* | 48v 24Ah Samsung 21700 50E Cell (1152Wh) |
| Range* | Up to 70km / Up to 120km with Dual Battery |
| Charge Cycle | 800 |
| Charge Time | 5 Hours |
| Mechanical | |
| Frame | 6061 Aluminum Alloy |
| Fork | Suspension with Adjustable Lockout |
| Tire | Kenda with K-Shield Puncture Resistance |
| Tire Size | 20" x 3.3" |
| Rim | Double Wall |
| Brake | Dual Piston Hydraulic Brakes 160mm |
| Brake Lever | Safety Motor Inhibitors |
| Shifter | Shimano Rapid Fire 7-Speed |
| Rear Derailleur | Shimano Acera |
| Crank | 52T Single Guard |
| Freewheel | Nickel Plated 11-32T 7-Speed |
| Pedal | Wellgo Aluminum Platform |
| Handlebar Stem | Adjustable Stem High Rise |
| Seat Post | 350mm x 30.6mm |
| Saddle | Selle Royal Spring Cushion Seat with Gel Padding |
| Weight | |
| Weight | 70lbs (Including battery) |
| Load Capacity | 275lbs |
* Dual Battery: Optional and does not come standard with the bike. It must be purchased separately.
* Range: May vary and fluctuate depending on several factors, most notably the weight of the user, steepness of terrain, extent of power assist, and throttle use.
Size & Fit
| Sizing Guide | |
| Size Fit | 5'0" - 6'4" |
| Min Handlebar Height | 112cm / 44" |
| Max Handlebar Height | 125cm / 49" |
| Standover Height | 40cm / 16" |
| Min Seat Height | 83cm / 33" |
| Max Seat Height | 103cm / 40" |
| Total Length | 172cm / 67" |
| Folding Size | 43" x 23" x 29" |
LCD Display
Our sophisticated software empowers riders to personalize controller settings to suit their preferences. Key functionalities include the ability to turn on/off the secure lock, remove speed restrictions, modify motor responsiveness, configure the pedal assist levels, and toggle cruise control on/off.
Assembly Video & Owner's Manual
What's Included
- 3.0A Battery Charger
- Battery with 2 Keys
- Bell
- Bottle Holder
- Headlight and Taillight
- Kickstand
- Mini Tool Kit
- Mudguards (Fenders)
- Rear Rack
FAQs
Is it easy to assemble an eBike?
> Yes, our bikes arrive 95% assembled directly from the box.
Can I upgrade to a dual-battery system later?
> Absolutely, all of our eBikes, excluding the Fixie and Bolt models, come with ports ready for a secondary battery, allowing for a dual-battery setup in the future.
Does the secondary battery include a charger?
> No, chargers for the secondary battery can be purchased separately here.
What are the shipping costs?
> We offer complimentary shipping on all orders that include an eBike.
How long does it take to ship my eBike and how long does it take to arrive?
> Typically, it takes 1-5 business days to ship, and a few additional days for delivery. For further details, click here.
Can I cancel my order and get a refund?
> Yes, cancellation is possible but incurs a 5% processing fee if paid by credit card. For more information, click here.
Can I return my order?
> Absolutely, we offer a 14-day return policy. For further details, click here.
